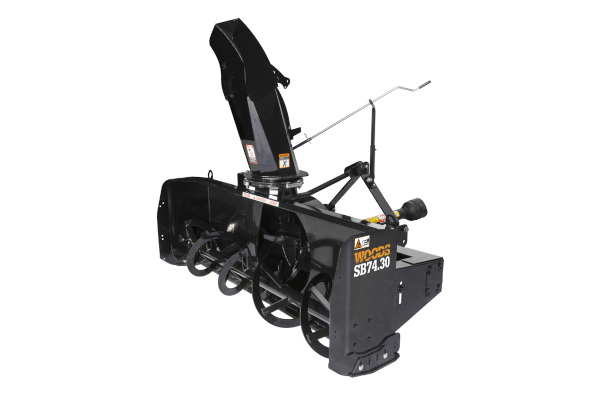

Woods SB74.30

New Products / Woods / Snow Blowers / SB / SB74.30

Double tap to zoom

Dynamically balanced auger and impeller for less vibration
Heavy-duty reinforced housing to withstand hard impacts
Shear bolt protection on driveline for processing heavy snow
Backed by a 6-year gearbox warranty under the industry-leading Woods Cut Above™ Warranty Program
Chain drive for easy access to bearing and shear bolt, and servicing chain drive
Skid shoe protects the frame and prevents wear. Replaceable and adjustable for height
Stand positions your snow blower for easier tractor connection
Mechanical or hydraulic chute adjustment allows for easy repositioning of the chute
Quick-hitch ready from the factory making for easier tractor hook up

Tractor PTO HP	30-50
Hitch Category	CAT 1 and 2
Operating Weight; including chute & hydraulic deflector (lbs)	640
Working Width (in)	74
Working Height (in)	27 1/2
Overall Width (in)	75 1/4
Overall Length (in)	45 1/2
Impeller Diameter (in)	24
Impeller Width (in)	9
Impeller (rpm)	540
Main Auger Diameter (in)	15
Auger Driven System	Chain No. 60
Auger (rpm)	200
Chute Rotation	Manual or Hydraulic
Replaceable and Reversible	Yes
Cutting Edge Dimension (in)	3/8 x 1 1/2
Main Driving System	Driveline Series 50
Chain Idler	Yes
Parking Stand	Yes
Number of Auger Shear Bolt	1 (on drive shaft)
Number of Impeller Shear Bolt	1 (on driveline)
Type of Hitch	3 pts., CAT 1 & 2
Quick Hitch Compatible	Yes, CAT 1 only
Gearbox Warranty	6-years Includes Seals
