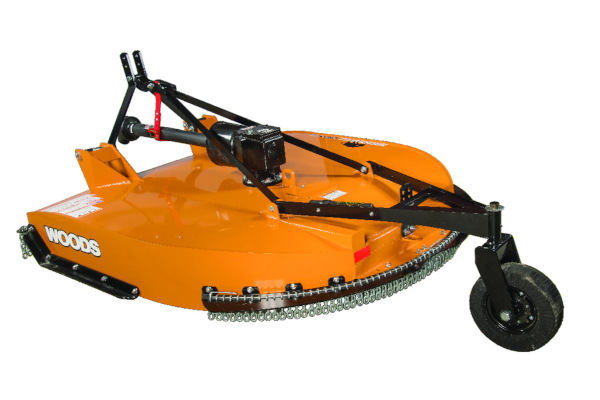

Woods BB60.50

Double tap to zoom

Three-point hitch: CAT 1 & 2, quick-hitch ready
Cuts brush up to three inches in diameter
Six-year limited gearbox warranty includes the seals
12.7 inches deep, with half-inch by four-inch blades, and rear baffling that work together to evenly cut and distribute large amounts of material, for a superior cut quality
Comes standard with adjustable driveline hanger making it easier to attach
Greasable Quick-change blade pins are easy to maintain and remove from top of the deck through large blade access window
High-strength steel bumper with a Z-channel frame for added durability when backing over tough brush
NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.

Tractor PTO HP	30-150
Tractor Hitch	CAT 1 and 2 clevis
Cutting Height Range (in)	2 to 12
Cutting Capacity Diameter (in)	3
Cutting Width (in)	60
Blade Tip Speed (fpm)	15,525
Weight (lbs.)	975
Deck Thickness (in)	.135 (10 ga)
Side Frame Thickness (in)	0.25
Side Frame Depth (in)	12.7
Transport Width (in)	67.3
Output Shaft Diameter (in)	2
Overall Width /Length (in)	100
Deck Construction	Smooth top, sloped
Gearbox HP	150 *Gearbox horsepower ratings listed are based on field testing.
Blade Dimensions (in)	1/2 x 4
Frame and Deck Support (in)	3 x 3 tube
Tractor PTO Speed (rpm)	540
Quick-hitch Compatible	Yes
Blade Carrier	Diamond stump jumper, optional round
Driveline Protection	Slip-clutch
Skid Shoes	Full-length, replaceable
Rear Bumper	Z-channel
Options	Rubber belting/steel band or chain shielding; check chains, round stump jumper
