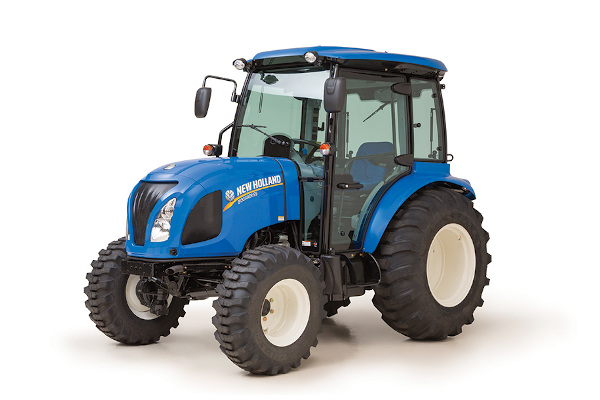

New Holland Boomer 55 Cab
Features
Boomer™ 35-55 HP Series
COMPACT TRACTORS DESIGNED AROUND YOU
If you have a large property and a wide variety of chores, step up to a deluxe Boomer™ Compact Tractor. Regardless of the horsepower, transmission, or operator package you choose, you’ll find Boomer tractors are free from clutter and are easy to operate. Their exceptional power, maneuverability and simple maintenance make them ideal for homeowners, landscapers and part-time farmers alike.
ENGINE
HIGHER POWER AND PERFORMANCE
Whether you use your tractor to maintain a few acres of land or you depend on it to make a living, Boomer™ compact tractors will deliver. In all, there are five models ranging from 35 to 55 horsepower. As a rule of thumb, the more work you do in a typical week, the greater the horsepower you’ll want.
TRANSMISSION
FREEDOM OF CHOICE COMES STANDARD
Everybody’s needs are unique. That’s why Boomer™ compact tractors are available with two transmission options: a Hydrostatic Transmission, or a Synchronized Shuttle Shift Gear Transmission (Boomer 35/40 = 12x12 / Boomer 45/50/55 = 16x16).
HITCH AND HYDRAULICS
ALL THE HYDRAULIC POWER YOU NEED
Whether you need to load mulch, mow the lawn, clear a pasture, dig a trench, till a garden, remove snow or install a fence, Boomer™ compact tractors are up to the challenge. Better yet, with a three-point hitch lift capacity of up to 2,756 pounds, you can do all of the above with larger, more efficient implements. When it comes to productivity, you are getting the best for the money.
OPERATOR PLATFORM
THE DEFINITION OF OPERATING EASE
Boomer™ operating platform gives you a direct, open path to the seat with no stripping or squeezing between controls. Controls and pedals are perfectly positioned for easy access, but where they’re not in the way.
CAB
ALL-WEATHER COMFORT IN ANY SEASON
For supreme comfort and protection from the elements, opt for a Boomer model equipped with a factory-installed cab. It’s available on Boomer 40/45/50/55.
WARRANTY/MAINTENANCE
NEW HOLLAND HAS YOUR BACK WITH BOOMER GUARD6
Peace of mind comes standard with Boomer™ 35/40/45/50/55 compact tractors because they are backed by a FREE Boomer Guard6 Limited Warranty. It provides 6 years of worry-free operation, including 2 years of “bumper-to-bumper” coverage plus an extra 4 years of powertrain protection. It’s among the best warranties in the industry
FWD AXLE
EXCEPTIONAL MANEUVERABILITY
No matter what the task, you’ll appreciate having one of the tightest turnaround diameters in the industry. Our FWD axle comes standard on all models and lets you maneuver effortlessly around obstacles and make extra-tight turns when mowing or grading, or while making a headland turn with a disc harrow.
Specifications
Boomer 55 Cab (T4B) | |
Engine Power, hp (kW) | |
Emissions Level | T4B Final |
Gross horsepower hp (kW) | 55 (41) |
Rated speed rpm | 2600 |
No. of cylinders | 3 |
Aspiration | Turbo |
Displacement cu.in. (L) | 114.7 (1.9) |
Alternator amps | 70 |
Fuel Tank gal. (L) | 12.4 (47) |
PTO | |
PTO horsepower hp (kW) | 46.7 34.8) Gear 44.0 (32.8) HST |
PTO speed rpm | 540 |
PTO type | Independent Electro-Hydraulic Engagement |
Mid-PTO | Standard |
Mid-PTO speed | 2000 |
Transmission | |
Type/Control Choice 1 | 16x16 Gear |
Type/Control Choice 2 | 3 Range Hydrostatic/Dual Pedal |
Maximum forward speed mph (kph) | 17.0 (27.3) Gear - 17.9 (28.8) HST |
Cruise control | Standard HST |
Gear/shuttle type | Synchro |
Rear diff-lock engagement | Mechanical |
Brake type | Wet, Multi-Disc |
Hydraulics & 3-Point | |
Implement hydraulic flow gpm (lpm) | 8.2 (31) |
Steering hydraulic flow gpm (lpm) | 4.2 (15.9) Gear - 5.3 (19.9) HST |
Total Flow gpm (lpm) | 12.4 (46.8) Gear - 13.5 (50.8) HST |
Remote Valves | 1 Standard 2 Optional |
3-Point hitch | Telescopic Stabilizer /Flex Link Ends |
3PT lift capacity @ ball ends lb. (kg) | 2756 (1250) |
3PT lift capacity @ 24 in. (610 mm) behind ball ends lb. (kg) | 2116 (960) |
3-Point linkage category | I |
Front Axle Options | |
Two-Wheel Drive | N/A |
Four-Wheel Drive | Standard |
Dimension/Weight | |
Wheelbase in. (mm) | 73.2 (1860) |
Length in. (mm) | 128.1 (3254) |
Width in. (mm) | 69.1 (1755) |
Height (top of ROPS or Cab) in. (mm) | 94 (2388) |
Weight lb. (kg) | 4194 (1903) |
Axle | |
Three-Point Lift Capacity @ ball ends, lbs |
