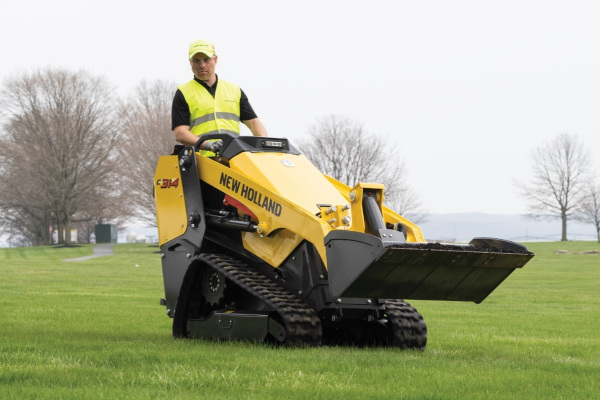

Mini Track Loaders C314
Overview:
TAKE A BREAK FROM BACK-BREAKING WORK.
Ditch the shovel and wheelbarrow and all the hard manual labor that goes with them. The New Holland C314 mini track loader is all the equipment you need to get more done. The C314’s big operating capacity adds more jobs to your residential construction and landscaping checklist.... + Read More
Features
LIFT WITH EASE
Grading, digging, moving material, digging fence posts, and just about any other landscape task you can think of just got easier. The C314 and all 3,536 pounds (1604 kg) of operating weight on narrow track and 3,783 pounds (1716 kg) on wide track has your back on the jobsite. The radial lift geometry means a simple linkage system with a single pivot point to provide greater forward reach at mid-range heights.
SMALL BUT MIGHTY
Take a break from back-breaking work to discover how power and versatility are a formidable combination in the C314. This machine may have mini in its name – coming in at 56.5 inches (1435 mm) in height and 85.6 inches (2175 mm) in length – but believe it is mighty, providing 2,833 pounds (1285 kg) of rated operating capacity on the narrow track. Plus, direct drive hydraulic motor offers maneuverability and control to complete the most precise jobs in tight areas.
CONSIDER WIDE TRACK
The wide track on the C314 measures 40.4 inches (1026 mm) in width to maximize your versatility in developing job sites and moving landscaping materials. With 3,148 pounds (1428 kg) of rated operating capacity on the wide track and 1,574 pounds (714 kg) at 50% of tipping load, you can count on the C314 to possess the strength required for the operation.
POWER AND VERSATILITY
The C314's interface and 14-pin electric multifunction control offers greater versatility with new and older attachments ranging from augers, trenchers, grapple buckets, rakes, and beyond. The 24.8 HP (18.5 kW) engine provides quiet and smooth operation and the Tier 4 Final solution means no required DEF (Diesel Exhaust Fluid) or a DPF (Diesel Particulate Filter). Operators can maximize total cost of ownership with less maintenance and maximum uptime without the need for a parked regeneration.
Specifications
| MODEL | C314 |
| Operating Weight | |
| Narrow Track (NT) (lbs. (kg)) | 2X Counterweights (standard): 3,536 (1 604) |
| Wide Track (WT) (lbs. (kg)) | 6X Counterweight (optional): 3,783 (1 716) |
| Dimensions | |
| Overall Height (in. (mm)) | 56.5 (1 435) |
| Overall Length: Without Bucket (in. (mm)) | 85.6 (2 175) |
| Machine Width: Narrow Track (in. (mm)) | 35.0 (890) |
| Machine Width: Wide Track (in. (mm)) | 40.4 (1 026) |
| Bucket Width: Narrow Track (in. (mm)) | 36.0 (914) |
| Bucket Width: Wide Track (in. (mm)) | 42.0 (1 067) |
| Loader Performance Specifications | |
| Lift Geometry | Radial Lift |
| Narrow Track Rated operating capacity – ROC*: 35% of tipping load (lbs. (kg)) | 992 (450) |
| Narrow Track Rated operating capacity – ROC*: 50% of tipping load (lbs. (kg)) | 1,416 (643) |
| Narrow Track Tipping load* (lbs. (kg)) | 2,833 (1 285) |
| Wide Track Rated operating capacity – ROC*: 35% of tipping load (lbs. (kg)) | 1,102 (500) |
| Wide Track Rated operating capacity – ROC*: 50% of tipping load (lbs. (kg)) | 1,574 (714) |
| Wide Track Tipping load* (lbs. (kg)) | 3,148 (1 428) |
| Engine | |
| Model | Kubota D1305-E4B |
| Emissions Certification | Stage V |
| Cylinders | 3 |
| Displacement (in.³ (L)) | 77.0 (1.261) |
| Fuel | Diesel |
| Exhaust aftertreatment | N/A |
| Engine speeds Rated – full load (rpm) | 2600 |
| Horsepower @ 2600 RPM – SAE J1349 | |
| Gross Horsepower (hp (kW)) | 24.8 (18.5) |
| Net Horsepower (hp (kW)) | 24 (18.0) |
| Peak torque @ 1700 RPM (lbs.-ft. (Nm)) | 59.1 (80.1) |
| Drivetrain | |
| Transmission Type | Hydrostatic |
| Max. Travel speed (mph (kph)) | 4.7 (7.5) |
| Parking brake: Type | SAHR pin brake |
| Electrical | |
| System Voltage (V) | 12 |
| Alternator (amps) | 60 |
| Battery | 62 AHR, 540 cold-cranking amps @ 0° F (-18° C°) |
| Hydraulics | |
| Implement pump type | Fixed Gear |
| Displacement (in.³ (cm³)) | 1.2 (19) |
| Standard flow @ rated engine RPM: @ 100% efficiency (gpm (Lpm)) | 13.2 (50) |
| Loader control valve: Type | Open center |
| Implement Hydraulics Operating Pressure (psi (bar)) | 2,800 (190) |
| Service Capacities | |
| Fuel Tank (gal. (L)) | 7.9 (30) |
| Engine oil w/ filter (qt. (L)) | 6.0 (5.7) |
| Hydraulic system (gal. (L)) | 4.5 (17) |
| Engine Coolant (gal. (L)) | 0.9 (3.5) |
