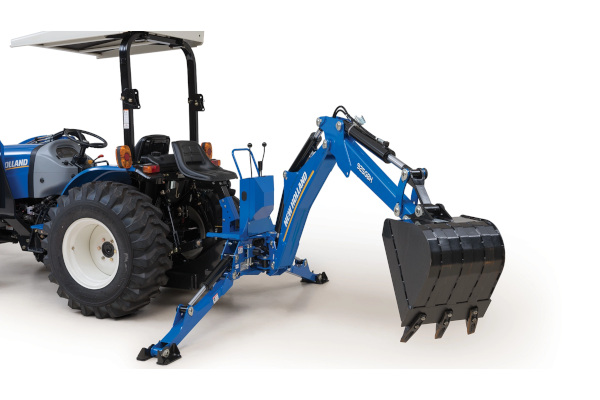

Call UsNew Holland 905GBL
Utility Backhoes 905GBL
Overview:
TRANSPORT HEIGHT (IN. (MM))
74.7 (1897)
SHIPPING WEIGHT (LBS. (KG))
707 (321)
Features
BIG DIGGING POWER IN A SLEEK DESIGN
With their compact design, low overall height and minimum soil compaction, utility backhoes are a natural fit in small spaces. Perfect for plumbers, builders, nursery owners, landscapers or anyone who wants durable digging power in a compact package.
CLEAR SIGHTLINES
The curved boom design provides increased visibility, so you have a clear view from the seat of your tractor.
EASY ON, EASY OFF
Attaching and detaching your utility backhoe is a fast, one-person job with quick-coupling hydraulics and self-aligning rear hangers.
TWO-LEVER WOBBLE STICK CONTROL
Two levers make it easy to operate the boom, dipper stick, bucket and swing.
LOW-PROFILE CONSOLE
A sleek design houses the controls without obstructing your view of your work.
BUCKET OPTIONS
A complete range of buckets is available to satisfy every digging requirement.
COMFORTABLE SEAT
A fully adjustable and cushioned seat lets you work longer hours in comfort.
Specifications
| MODEL | 905GBL |
| Model Compatibility | |
| WORKMASTER™ 25S | Compatible |
| WORKMASTER™ 25 | - |
| WORKMASTER™ 35 | - |
| WORKMASTER™ 40 | - |
| WORKMASTER™ 50 | - |
| WORKMASTER™ 60 | - |
| WORKMASTER™ 70 | - |
| Boomer™ 24 | - |
| Boomer™ 35 | - |
| Boomer™ 40 | - |
| Boomer™ 45 | - |
| Boomer™ 50 | - |
| Boomer™ 55 | - |
| Specifications | |
| Transport Height (in. (mm)) | 74.7 (1897) |
| Loading Height (in. (mm)) | 59.6 (1514) |
| Maximum Digging Depth (in. (mm)) | 79.4 (2017) |
| Reach from Centerline of Swing Pivot compatible with backhoe installed (in. (mm)) | 114.9 (2919) |
| Swing Arc (degrees) | 135 |
| Bucket Rotation (degrees) | 169.4 |
| Stabilizer Spread - Down (in. (mm)) | 78.6 (1996) |
| Stabilizer Spread - Up (in. (mm)) | 53.2 (1351) |
| With Bucket Cylinder (in. (mm)) | 2194 (995) |
| With Dipperstick Cylinder (in. (mm)) | 1332 (604) |
| Shipping Weight (lbs. (kg)) | 707 (321) |
