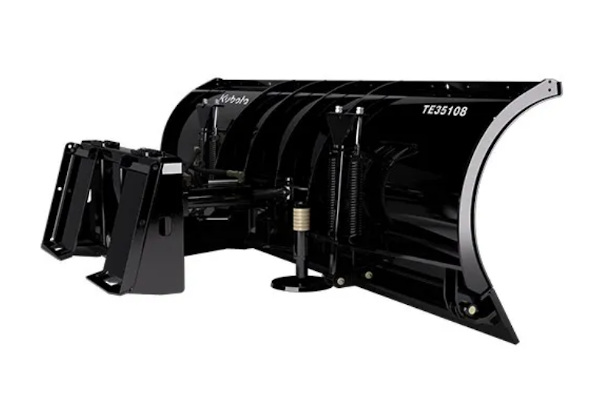

TE35 Series Trip Edge Blades TE35108
Overview:
The trip edge design of the TE35 eliminates damage to surfaces and to the machine while moving large amounts of snow down to the surface in a single pass. Ideal for snow contractors, municipalities, schools, and landscapers.
Features
| Features | Benefits |
| Reinforced 7 gauge (4.6 mm) moldboard design | Provides added strength and durability. |
| Choice of 96"(2.44m) or 108" (2.74 m) working widths | Allows customers to choose the cutting edge that meets their operational needs. |
| Double acting angling cylinders | Easily enables up to 30 degrees of angling to left or right distributing the material where you want it to go. |
| Cushion valve | Protects hydraulic cylinders and frame against hydraulic pressure spikes exceeding 1600 psi (11 mPa) caused when striking solid objects at the outer ends of the cutting edge. |
| Trip edge design with adjustable springs | Protects the structural integrity of the cutting edge while still maintaining load control no matter what the bottom edge encounters. |
| Easy attach mounting system | Designed for skid steer loaders with skid steer type mounting plates. |
| Rotational free pivot float action cutting edge design | Allows cutting edge to rotate on its mounted trunnion keeping the cutting edge in uniform contact with the ground. |
| Pivot float lock | Keeps cutting edge level when in transport for better operator visibility and safer handling. |
| Cast grip steps | Provides for safer and easier mounting and dismounting by the operator with the Trip Edge Blade attached. |
| 30" (76.2 cm) overall moldboard height | Provides ability to perform in deep snow conditions |
| Replaceable cutting edge | Offered in steel or heavy-duty poly construction to match ground & surface operating conditions. |
| Abrasion Resistant Skid shoes | Offered as standard equipment. Abrasion resistant to last longer. Establish lower limits of cutting edge operation to prevent surface gouging or cutting too deep. |
| Optional cable filled orange markers | Provides operator with improved awareness and visibility of outermost edges of the moldboard and cutting edge to prevent unwanted contact with ground obstacles. Filled with a steel cable for longer life. |
| Optional top-mounted rubber deflector | Helps prevent snow from over-topping the moldboard in deeper snow conditions. |
Specifications
| Model | TE35108 |
| Skid steer horsepower | Minimum 60 hp (45 kW) Maximum 100 hp (75 kW) |
| Hitch type | Skid steer type quick attach, meets ISO 24410 |
| Hitch mounting steps | Serrated |
| Moldboard construction | 7 Ga. (4.6 mm) Steel |
| Moldboard height | 30" (76.2 cm) |
| Maximum cutting width | 108" (2.74 m) |
| Cutting width @ 30° angle | 93" (2.36 m) |
| Maximum pivot angle | 30° left & 30° right |
| Hydraulic angle cylinders | Two double acting cylinders, 2 1/2" bore x 8" stroke |
| Maximum hydraulic pressure rating Hydraulic cylinders Hydraulic hoses and fittings |
3500 psi (24.1 mPa) 4000 psi (27.6 mPa) |
| Maximum float angle | Floats on the skid shoes 5° clockwise & 5o counterclockwise |
| Trip Edge Blade pivot pin sizes Angle pivot pin Float pivot pin |
1.75" 2" |
| Cutting edge options | 5/8" (16 mm) x 8" (20.3 cm) high carbon steel 1" (2.5 cm) x 8" (20.3 cm) ultra-high-molecular-weight polyethylene (UHMW) Cutting edges are reversible and replaceable |
| Trip Edge Blade protection | Adjustable spring-loaded, trip edge |
| Trip release pressure | 1800 lbs (816 kg) |
| Skid shoes | Adjustable, constructed of 5/8" (16 mm) abrasion resistant steel |
| Base equipment weight | 1134 lbs (514.4 kg) |
| Optional equipment weight Steel cutting edge Poly cutting edge Deflector Blade marker |
154 lbs (69.9 kg) 57 lbs (25.9 kg) 27 lbs (12.2 kg) 2 lbs (.9 kg) |
