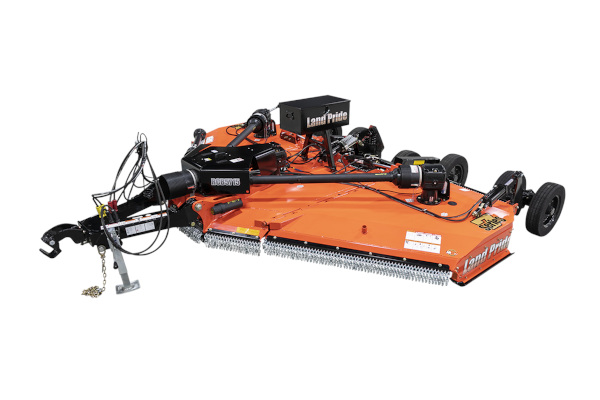

Land Pride RCBM5715

New Products / Land Pride / Rotary Cutters / RCB5715 Rotary Cutters / RCBM5715

Double tap to zoom

Features
Specifications

Features

Features	Benefits
Surpassed rugged industry standards	All Land Pride Rotary Cutters have been designed and tested and meet rigorous voluntary testing procedures according to ISO 4254-13.
Factory assembled	Arrives for quick and easy set-up. Minimal time wasted setting or prepping the unit.
Rugged heavy built gearboxes	Capable of handling heavy cutting applications.
Gearbox seal protection	Gearbox bottom seal protection for longer bearing life.
Sliding guard for splitter gearbox	Sliding guard offers protection and easy access for improved efficiency of splitter gearbox maintenance.
Detachable shields on the wing gearboxes	Provides easy maintenance access to the driveline slip clutches and yokes.
Two piece driveline shields	Driveline grease zerks are easier to access.
Low hitch weight on tractor drawbar	Ideal for smaller hp tractors by reducing the amount of weight on the drawbar.
Narrow A-frame tongue	Allows for a tighter turning radius.
Adjustable park jack angle	Park jack can be adjusted to be perpendicular to the ground.
Adjustable driveline support	Serves as support rest for the driveline when the cutter is unhooked from the tractor. Assist operator when attaching driveline to the tractor power take-off shaft.
Input driveline: Cat. 6 CV	Driveline is matched just right for tractor capacity. Constant velocity (CV) U-joint allows for 80 degree turns without doing damage to the driveline.
Drivelines with slip-clutches: Cat. 5 intermediate Cat. 4 or Cat. 5 wings	Driveline is sized right for the intended cutting capacity. Slip-clutches will slip under load to minimize twist damage to driveline profiles.
Grease zerks on end caps of driveline	Intermediate and wing driveline cross journals are easier to grease.
High blade tip speed	Allows clean cutting of material.
6" Blade overlap	Eliminates skipping during turns.
Forged blade bar (Optional)	Provides the critical strength needed for consistent, top performance.
3/16" Round stump jumper (Optional)	Standard thick stump jumper material keeps damage to a minimum.
Smooth top design	Reduces accumulation of debris and is easier and faster to clean.
Tops of decks are 100% welded	Makes center and wing decks stronger.
Deck ArmorTM (Optional)	Reduces deck damage from blade to deck contact without affecting cut quality.
Replaceable 1/4" side skirt thickness	Increased thickness reduces damage from objects thrown into the side skirts.
Multiple center skid shoe locations	Run two skid shoes under the hitch pivots or two skid shoes under the wing hinges.
Beveled skid shoes on wings	Reduces gouging the ground when turning.
LED signal lights	LED lights are bright, long lasting, and resist vibration, unlike incandescent lights.
Wire harness 7-pin plug holder	Spring hose loop mounted holder keeps wire harness plug out of the dirt and rain.
Hinged wing sections	Allows cutter to follow terrain. Ideal for rough ground where hillsides, ditches, and hollows can cause uneven cutting.
1" Solid hinge rods	Larger diameter hinge rod provides greater strength in the hinge area.
Wing transport lock pins	Transport lock pins hold the wings in the folded position in the event of hydraulic loss.
Enclosed dual 1" leveling rods	Cutter pulls equally on the rear axle while traveling over rough terrain.
Five-bolt hubs with larger bearings, five lip hub seals, and bolted-on hub caps	Makes the wheel assembly more durable and longer lasting. Five hub seals make it harder for water & debris to enter the hub and grease to leave the hub. Hub caps cannot be knocked off by foreign material.
Drain holes in wheel rims	Allows water to drain from wheels mounted on the folded-up wings. Helps prevent paint deterioration and rusting to the wheel rims.
Replaceable individual wheel spindles	Spindles can be replaced when damaged without replacing entire axle assembly.
Tire options	Laminated tires: Eliminates flats. Air-filled tires: Give better cushion while transporting. Foam-filled tires: Give better cushion while transporting and can't go flat.
LP Performance HitchTM (Optional)	One person Hook-up. Great for uneven terrain, reduces drawbar wear. Hitch pivots freely up and down and pivots about the tractor drawbar up to 12 degrees in both left and right directions.
Bar-Tite hitch (Optional)	Ideal for extreme conditions. Clamps tight to drawbar eliminating drawbar wear.
Maintenance free tongue & axle pivots	Self lubricating journal bearings make for less maintenance.
Color-coded hydraulic hose handles	Easy hose identification & sturdy handle to easily connect & disconnect from tractor.
Hydraulic hose holders	Tongue mounted hose holder keeps hose tips out of the dirt.
Greasable cast steel, continuous hinges	Cast steel hinges make a strong connection & are easy to lubricate.
Center axle options	HD Single suspension center axle: Spring cushion at the cylinder for cushion with least amount of moving parts. Independent suspension center axle: Offers additional suspension support per wheel axle. Walking tandem center axle: Designed for versatility over a multitude of terrains. Parallel pivot center axle: Provides unmatched ground contact for hill-like terrains.
Wing axle option	Independent suspension wing axles: Offers additional suspension support on each wing axle. Walking tandem wing axles: Designed for versatility over a multitude of terrains. Parallel pivot axles: Provides unmatched ground contact for hill-like terrains.
Dual-acting fold cylinders (optional)	Allows for a narrow transport width of 7'3" (2.21 m).
Flip spacers	Easily change cut height with a flip of a spacer.
SMV Mounting Socket (Standard) SMV Sign (Accessory)	SMV mounting socket receives most SMV signs equipped with a mounting blade for ease of attachment and removal when transporting on a truck or trailer. SMV sign is offered as an accessory when the tractor's SMV sign and mounting blade does not fit the cutter's standard SMV mounting socket.

Specifications

Engine horsepower range:	60 - 250 hp (44.7 - 186.4 kW)
Gearbox horsepower:	540 rpm or 1000 rpm 250 hp (186 kW) Divider and 225 hp (168 kW) Center & Wings
Gearbox lubrication:	Gear Lube 80-90W EP
Gearbox oil capacity:	Splitter: 5.5 pints (2.6 L) Center deck & Wings: 12.4 pints (5.87 L)
Cutting capacity:	5" (13 cm)
Machine weight:	5,880 lbs (2667 kg) - Weight includes base unit, six 21" laminated tires, HD single suspension center & wing axles, 540 CV Cat. 4 main driveline package, front & rear single chain guards, single acting fold cylinders, constant level clevis hitch, and forged blade bar with bolt-on dishpan blade carriers.
Tongue weight:	2,226 lbs (1010 kg) with wings down.
Blade tip speed At 540 rpm: Blade tip speed At 1000 rpm:	Center Blades & Wing Blades = 16,400 FPM (83 mps) Center Blades = 16,400 FPM (83 mps) & Wing Blades = 16,000 FPM (81.3 mps)
A-frame tongue:	5" x 3" (12.7 cm x 7.6 cm) rectangular tubing.
Hitch types:	Constant Level Swivel Clevis Hitch, LP Performance HitchTM, Self Leveling Bar-Tite Hitch, Ball Hitch, or Constant Level Pintle Hitch.
LP Performance Hitch & Bar- Tite hitch pivot shaft diameter:	2 1/4" (5.7 cm)
Hitch jack:	Standard 7,000 lbs. (3175.1 kg)
Signal lights: Seven pin connector:	LED SAE J560 pin configuration
Cutting width: Overall width: Transport width with 21" tires:	15'-0" (4.57 m) 16'-0" (4.88 m) 10'-3" (3.12 m) - Single-acting fold option, 7'-3" (2.21 m) - Dual-acting fold option.
Overall length:	16'-3" (4.95 m) - With center deck raised fully up.
Deck height:	12" (30.5 cm)
Cutting height:	1-1/2" - 16" (3.8 cm - 40.6 cm) - Varies by tire option.
Lift hydraulics Center deck:	3 1/2" x 8" Re-phasing hydraulic cylinder with hoses, fittings & flip-over spacers
Lift hydraulics Right wing:	3 1/4" x 8" Re-phasing hydraulic cylinder with hoses & fittings
Lift hydraulics Left wing:	3" x 8" Re-phasing hydraulic cylinder with hoses & fittings
Wing flex while operating:	Max. 20o down, can float up as needed as long as the wheel(s) are still on the ground.
Wing hydraulics:	3" x 12" hydraulic cylinders, hoses & fittings.
Wing transport protection:	Wing Transport Lock Pin.
Deck material thickness:	Top deck plate = 10 Gauge (3.4 mm) Bottom deck plate = 3/16" (5 mm)
Side skirt construction:	Removable/replaceable 1/4" (6 mm) steel.
Deck ArmorTM (Optional):	5/16" (8 mm) Steel plate
Wing deck skid shoes:	Each wing has one leading hardened beveled skid shoe and one trailing standard beveled skid shoe. Both are reversible and replaceable.
Center deck skid shoes:	Two replaceable beveled skid shoes and multiple mounting locations.
Blades - 6 (2 per carrier):	1/2" x 4" (1.3 cm - 10.2 cm) Heat-treated, free-swinging alloy steel with uplift.
Blade overlap:	6" (15.2 cm)
Blade bolt:	Keyed with hardened flat washer & locknut.
Stump jumper / blade holder options:	Forged blade bar without the dish pan. Thick 3/16" (5 mm) round dish shaped pan, reinforced with the forged blade bar.
Front & rear guards:	Optional single row chain or dual row chain.
Input driveline 540 & 1000 rpm:	Cat. 6 with constant velocity u-joint with or without over-running clutch.
Intermediate driveline:	Standard - Category 5 with slip-clutch.
Wing Drivelines	Standard - Category 4 with slip-clutch or Category 5 with slip-clutch.
Number of Wheels	6 - Wheel option: Four on transport axle and one on each wing axle. 8 - Wheel option: Four on transport axle and two on each wing axle.
Wheel Options	21" (53.3 cm) or 26" (66 cm) Laminated tires. 24" (61 cm) Used aircraft, foam filled tires. 25.5" (64.8 cm) 20 ply tires, foam filled or pneumatic. 29" (73.7 cm) Used aircraft tires.
Transport axle	Many configurations to choose from
Hubs	Cast iron five-bolt hubs with tapered roller bearings and 1 3/4" (4.4 cm) shafts.
SMV Sign (Accessory)	SMV decal on galvanized steel back sign and plated or galvanized blade mount.
