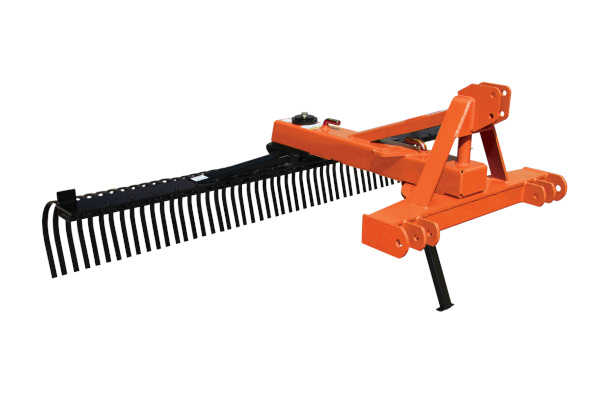

Land Pride LR3796

New Products / Land Pride / Dirtworking / LR37 Series Landscape Rakes / LR3796

Double tap to zoom

Features
Specifications

Features

Features	Benefits
84" & 96" Working Widths	Covers tire tracks and allows user to cover large areas in less time.
30-80 Tractor HP Range	Fits many tractors with a Cat. l or Cat. ll 3-point hitch.
Quick Hitch Compatible	Fits Land Pride Quick Hitch for a quick and easy one person hook-up.
Retractable Parking Stand	Keeps frame off the ground and makes hook-up easier.
2 1/2" Pivot Shaft	Heavy-duty shaft. Heaviest in its class.
16 1/2" Rake Height	Can move a great deal of material.
Rake Teeth Support Channel	Design with channel support. This design supports the rake teeth better than competitor models. Prevents teeth entanglement and keeps attachment hardware from working loose.
5/16" x 1" High-Carbon Spring Steel Teeth	Sized to eliminate premature bending and tooth breakage. Constructed of materials that have “memory” to spring back to shape.
Individual Replaceable Teeth	Makes replacing a damaged tooth quick and easy without removing all of the teeth.
Rake Angle 5 Positions	Versatility in operation. Vary how much material to move.
Rake Offset 7 Positions	Versatility in operation. Allows the unit to work closer to objects on the side the rake is of set towards.
Dual Gauge Wheels (Accessory)	Gives operator better depth control. Wide & narrow wheels available.
Flip-Down Grader Blade with End Plates (Accessory)	Enables the rake to perform light blading duties for moving and leveling dirt as well as other materials. Grader blade can be flipped up when not in use.
Rear Blade Attachment (Accessory)	The rake assembly can be removed from the main frame and a Rear Blade attached to give the Land Pride Rake versatility.
Hydraulic Angling (Accessory)	Allows operator to change rake angle from the tractor seat.

Specifications

Model	LR3796
Rake Width	96"
Approximate Weight (lbs.)	514
Number of Teeth	48
Horsepower Rating	30-80
Hitch Category	Cat. l & ll Combination (Quick Hitch Compatible)
Pivot Shaft Diameter	2 1/2"
Rake Height	16 1/2"
Parking Stand	Standard
Individual Replaceable Teeth	Standard
Teeth Size	5/16" x 1" Wide
Teeth Spacing	2" Centers
Teeth Material	High-Carbon, Spring Steel
Rake Angle Standard (Manually) Hydraulically	5 Positions, Maximum 30° Right or Left in 15° Increments Any Degree up to 45°
Rake Offset Manually	7 Positions, Maximum 45° Right or Left in 15° Increments
Dual Gauge Wheels* (Accessory)	Dual Narrow Width Wheels 13" x 4" x 6" or Dual Wide Width Wheels 13" x 6.5" x 6"
Flip-Down Grader Blade (Accessory)	Flip-Down, Self-Supporting Grader Blade with Blade-up Locking Handles and Locking Pins
Rear Blade Attachment (Accessory)	Available in 72", 84" & 96" Working Widths
