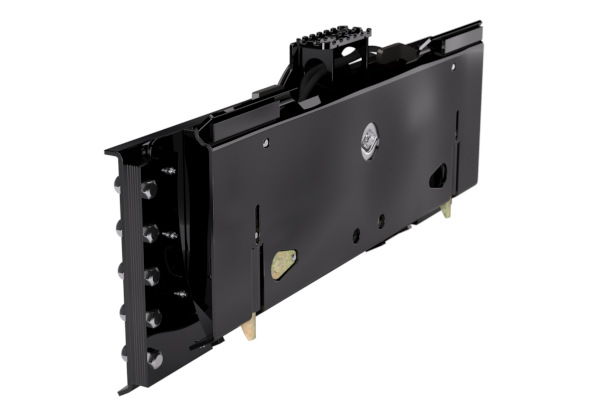

Land Pride TH35

Double tap to zoom



Features

Features Benefits
20 Degree tilt in both directions Tilts buckets and other attachments to help with grading and leveling.
Angle gauge & bubble level Helps the operator set to desired angle and the bubble level helps get attachment to level.
Nylon slide pads These nylon slide pads contain lubricating properties.
Flat face couplers connect under pressure Easier to hook up to skid steer.
Universal skid steer plate Fits most skid steer loaders.

Specifications

Overall height 24-1/4"
Overall width 48-1/2"
Overall length 7-7/8"
Weight 345 lbs
Tilt capacity 20 degrees in each direction
Tilt cylinder 2.5" x 5" x 1.25" 3500 psi
Angle gauge Standard
Bubble level Standard
Flat face couplers connect under pressure Standard
