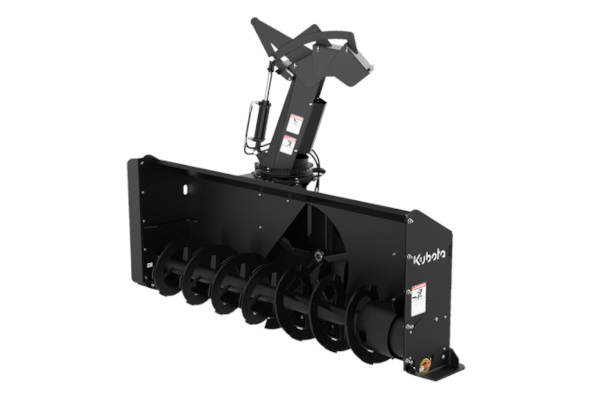

SBL30 & SBL35 Series Snow Blowers SBL3574
Overview:
OPTIONS
Optional fold-over chute, and optional bolt-on wings are available.
IMPELLER
26" 5-blade impeller, 16" rotor, and an optional fold-over chute allow the operator to direct snow to a precise location, even directly next to the power unit.
SKID SHOES
2 Styles of skid shoes to choose from.
Features
- 74" and 84" models
- SBL30: 17-23 gpm or 27-33 gpm
- SBL35: 34-41 gpm
- 16" Rotor
- 26" 5 blade impeller
- Optional fold-over chute
- Optional bolt-on wings
- 2 Styles of skid shoes to choose from
Specifications
| MODEL | SBL3574 |
| Working Width (m) | 74" (1.88) |
| Overall Width (m) | 82-1/2" (2.10) |
| Base Unit Weight - lbs (kg) | 1005 (455) |
| Hydraulic Requirements (Lpm) Low Volume | 0 |
| High Volume Motor Options | 34-41 gpm (128.7-155.2) |
| Hydraulic Pressure Rating (mPa) | 3500 psi (24.1) |
| Main Housing Material (mm) | 10 Gauge (3.4) |
| Side Plate Material (mm) | 1/4" (6) |
| Chute Opening at the Base (cm) | 10" (25.4) |
| Impeller Housing Depth (cm) | 7" (18) |
| Impeller Diameter (cm) | 26-3/8" (67) |
| Number of Impeller Blades | 5 |
| Auger Diameter (cm) | 16" (40.6) |
| Cutting Edge | Bolt-on & replaceable full-length cutting edge |
| Skid Shoes/Wear Plates | Bolt-on, adjustable & replaceable |
| Chute Rotation | 270°, Hydraulically driven sprocket |
| Spout Deflector | Hydraulic operation |
