Kuhn BTC 163 - DELIVERY BOX

EFFICIENT AND DURABLE DESIGN

Efficient Twin-Auger Design

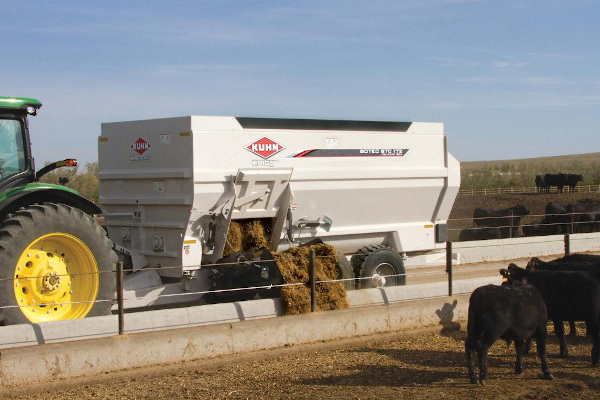

The BTC delivery box uses a simple, twin-auger design for consistent feed flow to the discharge, for fast, even feed placement across the entire length of the bunk.

The raised right auger keeps the lower left auger charged with feed to provide even material flow to the discharge. The raised right auger also helps with load leveling during feed delivery. The left discharge auger moves material forward to the discharge for a consistent feed placement in front of your animals.

The close auger tolerances and raised lower auger design provide a fast, consistent discharge from beginning to the end of unloading. This results in even feed placement across the entire length of the bunk without a delay for mixer cleanout. The auger design also eliminates material carryaround versus a chain and apron floor design.

Reliable and Long Lasting
The simple auger design eliminates the need for extra maintenance items that are necessary on an apron floor design such as retensioning, or replacing worn out chains, for a reliable, long-lasting machine. The auger design also eliminates material carryaround versus a chain and apron floor design.

Solid Undercarriage
The BTC delivery boxes feature the proven bogie axle design that provides reliable service and a solid foundation to carry the box. Single and tandem axle options, as well as multiple tire options, allow you to tailor the machine to fit your specific needs.

Ration Versatility
KUHN Knight BTC delivery boxes will deliver a wide range of ingredients including starter, finish and dairy rations faster and more efficiently than any other delivery boxes on the market.

RUGGED, DEPENDABLE DRIVE

Heavy-Duty Drive Design
The BTC delivery box uses a heavy-duty drive design, using a full length input shaft connected to a planetary gearbox. The planetary drive reduction eliminates high-speed chains and sprockets in the oil bath for smooth operation and low maintenance.

Splined shafts and sprockets, along with bolted auger flanges, provide a strong connection and positive power transfer. Heavy-duty bearings are mounted on the outside of the mixing chamber for easy service and long life.

Easy Access Door
The single-handled latch provides easy access to the oil bath. An improved seal keeps oil in, and dirt and debris out, to help minimize wear on drive components and maintain a cleaner appearance.

Truck Drive Options
For truck-mounted models, choose between a mechanical and a hydrostatic drive to match your operation’s needs.

Mechanical Drive
Due to the low horsepower requirement of the BTC design, a mechanical drive, powered by a transmission PTO, works well in many situations, at a lower cost than alternative drive options. Mechanical drives are available in a number of different configurations, including front and mid-unit gearbox mounting in order to match up to nearly any truck chassis. Mechanical drives are controlled with an in-cab control box.

Hydrostatic Drive
Hydrostatic drive systems are driven off of either a front engine (FEPTO) or rear engine (REPTO) power take-off. Driven off of the engine instead of transmission, hydrostatic drives allow for the mixer speed to be controlled independent of ground speed. The hydrostatic drives also allow for gentler startup, which is important in larger units delivering heavier loads.

TAILOR YOUR MACHINE

Trailer & Truck Models
To suit your operation’s needs, KUHN Knight BTC 100 Series delivery boxes are available in a trailer or truck-mounted configuration.

Trailer models are the most popular configuration as they are the most economical and versatile. Being detachable allows the tractor to be used elsewhere on the farm when not in use for feeding.

Truck-mounted models are a suitable option for those that have to feed cows at several different locations, with large travel distances. This option allows a feeder to quickly get from the mixing location to the feed bunk and back again.

Multiple Discharge Options

To best suit your feeding needs, you can choose from a slide tray, chain and slat conveyor, 3-auger discharge or a 4-auger discharge to be equipped on your BTC delivery box.

Slide Tray
The side discharge slide tray has simple hydraulic controls and helps guide feed further away from the tire path. Magnets are standard on slide tray.

Chain and Slat Conveyor
Rugged chain and slat conveyor options provide the ultimate in durability and long life. Heavy-duty components ensure reliable service and multiple conveyor length options offer unmatched flexibility to match different feeding situations.

3-Auger Discharge
The 3-auger discharge allows adjustment for feeding into higher bunks. It has a simple, hydraulic drive that provides smooth, even discharge. Long lasting, poly chute liners help prevent rust and limit wear. The 3-auger discharge comes standard with fixed tip-off and built-in magnets.

4-Auger Discharge
Center-rotating augers bring the feed to the center of the discharge to increase overall capacity and provide a smooth, even discharge for all ration types. The 4-auger discharge comes standard with power tip-off and built-in magnets. The discharge augers are simple to remove for easy service. Long-lasting, replaceable polyethylene chute liners prevent rust and limit wear.

As with the main auger drive, the discharge auger shafts are splined for a more positive power transfer and longer service life. The simplified drive design, featuring only two chains and a remote grease bank, results in in easy service and maintenance.
