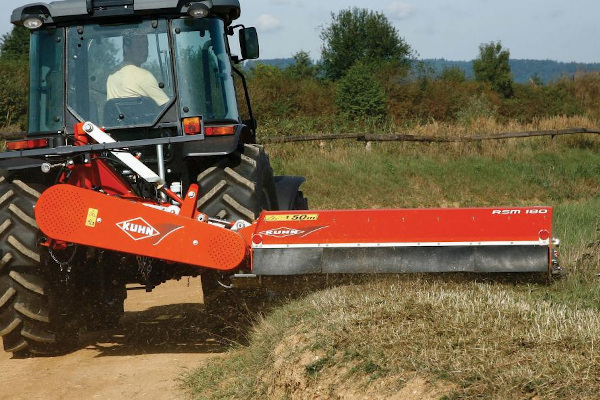

Kuhn RSM 180
![](/assets/Uploads/Kuhn-RSM-180-22.jpg)
Features
EASILY ADAPT
Easily Adapt to Mowing Conditions
Oscillating Main Frame
An oscillating main frame, with floating pivot on the mowing head, allows the mowing head to adapt to the conditions and environment around it.
Rear Roller
The 6” diameter rear roller provides optimal height control, eliminates ruts in loose soils and provides better clearance over irregular ground.
Vertical Lift
The vertical lift automatically compensates for uneven ground. The models in the RSM range can mow on a higher plane than the road level. The vertical lift function also makes it easier to mow shallow ditches while maintaining an optimal drive position.
Knife Options
- Articulated Hammer Knives
Create lift for a clean cut. The shackle allows more freedom to clear obstructions hidden in grass conditions. - Hammer Knives
Hammer knives are designed for shredding with plenty of lift and extra weight to power through brush up to 2”. Not for use in rocky conditions.
PROTECTION FROM DAMAGE
Heavy-Duty Belt Drive
The RSM utilizes a belt drive system built to handle heavy service. Its position keeps the PTO shaft as straight as possible, while the ventilated guard reduces heat buildup, extending the life of the belt.
Mechanical Safety Breakaway System
A mechanical safety breakaway system protects the mower from inadvertent encounters with obstacles. Simply back the tractor up to reset and continue mowing.
Structure of the Chassis and Frame
The structure of the chassis and frame are based on KUHN’s decades of experience with mowers and shredders. In the event of a collision with an obstacle, the mechanical safety device will protect the machine’s structure. Hydraulic non-stop protection is available as an option.
TOTAL CONTROL
Close Coupling
The specially designed headstock keeps the mower as close to the tractor as possible, offering outstanding controllability in both the mowing and transport positions.
Specifications
Model | RSM 180 |
Working width | 6' (1.83 m) |
Number of articulated hammer knives | 20 |
Hydraulic control of inner and outer cutting head position | Standard |
Inner protection cover | Standard |
Mechanical breakaway system | Standard |
Height adjustment by roller with removable ends | Standard |
Curved skid shoes | Standard |
Free wheel integrated in the central gearbox | Standard |
Hitch type | 3-point, Cat. 2 (quick hitch compatible |
Required tractor hydraulic connections | 2 SA - 1 with float required |
Machine net weight, approx. with roller | 1,565 lbs (710 kg) |
PTO Speed (rpm) | 540 |
Rotor drive | 4 - SPB belts |
Minimum PTO power requirement | 65 hp (49 kW) |
Maximum PTO power recommended | 90 hp (67 kW) |
