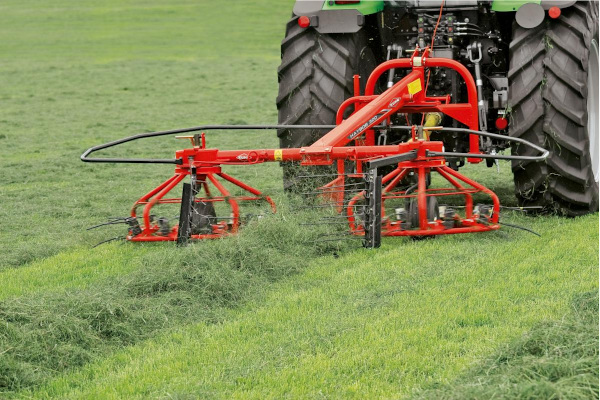

Kuhn Haybob 300 Tedder/Rake
![](/assets/Uploads/Kuhn-Haybob300-2021.jpg)
Features
DUAL OPTIMIZATION
Dual Optimization for Tedding and Raking
Tine Height and Rotor Pitch Angle
The tine height and rotor pitch angle are quickly optimized for both tedding and raking by adjusting wheel columns and the tractor’s top link to obtain the desired setting.
Rotor Basket
Each rotor basket is equipped with narrow and wide tines to obtain a wide working area for high-capacity operation and faster working speeds.
Central Swath Divider
A central swath divider ensures that crop is evenly distributed between the rotors when tedding to provide the most uniform distribution of crop for rapid drying.
EASILY ADJUST
Easily Adjust to Field Contours
Centrifugal Force Controlled Tines
The centrifugal force-controlled, horizontal tines self-adjust to field contours as they float through stubble to cleanly pick up crop, providing faster working speeds with little risk of contamination when tedding and raking.
Pivoting Headstock with Lock
The pivoting headstock unlocks while at work to closely follow the path of the tractor when turning, without damage to the windrow. When raised for transport, the headstock automatically centers and locks for added safety.
Adjustable Swath Boards
Adjustable swath boards produce neatly formed windrows and may be offset to form a double row in three passes.
HEAVY-DUTY COMPONENTS
Mounted, Pivoting Tines
Twenty individually mounted, pivoting tines feature nylon bearings to provide reliable performance and operation that is practically maintenance-free.
Specifications
Model | Haybob 300 tedder/rake |
Hitch type | 3-point, Cat. 1 & 2 |
Number of rotors | 2 |
Number of tines per rotor | 10 |
Working width when tedding | 9'10" (3.0 m) |
Working width when raking - double windrow | 19'8" (6.0 m) (3 passes) |
Working width when raking - single windrow | 9'10" (3.0 m) |
Wheel height adjustment | Standard |
Pivoting headstock | Standard |
PTO speed | 540 |
Minimum PTO power requirement | 15 hp (11 kW) |
PTO with slip clutch protection | Standard |
Safety guards | Standard |
Ballon tires | 15 x 6.0-6 (4-ply) |
Machine net weight approx. | 661 lbs (300 kg) |
Tedding or raking position | Center |
Shipping information: 1 machine per crate - gross total weight | 779 lbs (353 kg) |
