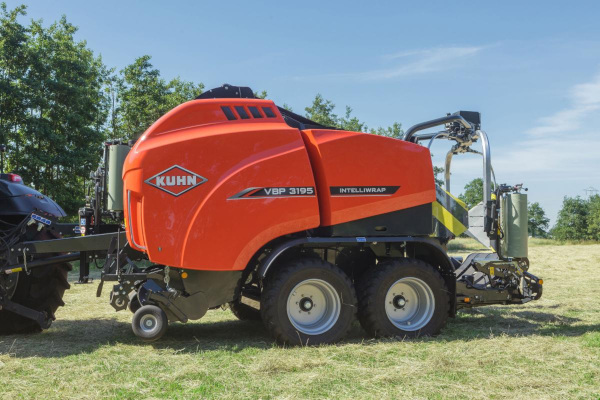

Kuhn VBP 3195 OPTICUT

Double tap to zoom



Features

HIGH-CAPACITY INTAKE

Optimal Crop Pickup
All VBP 3100 models feature a wide pickup with standard crop roller. The pickup is designed to maximize the full capacity of the machine. With a working width of 91” (2.3 m), the machine can work in all windrows and won’t let you down, even in the toughest conditions. Straight pickup tines help release the crop and reduce crop wrapping. The pickup roller compresses the crop against the pickup tines reducing friction, thus reducing leaf loss and increasing baler efficiency by evening out the windrow.

The 91” (2.3 m) rotor model pickup features standard pendulum frame and optional pivoting pickup wheels to allow the pickup to adapt to changing field conditions. Camless-shaped crop guides result in more aggressive and efficient pickup by exposing more of the tine when needed and by pulling the crop away from the tines as it approaches the intake. A cam track pulls the tines straight down in the rearward position to avoid wrapping, making this the only hybrid pickup on the market today.

Integral Rotor Technology
Patented Integral Rotor Technology found on the VBP 3165 baler-wrapper combination. This simple, low-maintenance intake system guarantees an enormous throughput capacity at all times. The short distance between rotor and pickup tines maintains consistent crop flow. The design of this force-fed intake makes higher forward speeds possible for increased productivity and reduces crop damage. The Integral Rotor on all models is provided with rotor tines made out of Hardox® wear plates. Hardox combines extreme hardness and toughness to reduce rotor tine wear. Longer wearing life of the rotor tines will help to provide time and money savings for the operator.

Cutting, OptiCut Rotors
The OptiCut cutting rotors are designed for unlimited intake capacity and excellent cutting quality. KUHN OptiCut rotors, with elliptical shaped rotor tines, are acknowledged by users as one of the best cutting systems on the market. The crop is guided and drawn down to the knives from an early stage, which improves flow and cutting performance and prevents unwanted plugging. The VBP 3165 and 3195 can be equipped with the OptiCut 14 or OptiCut 23 rotor to best suit your needs.

The Integral Rotor, with the 14-knife OptiCut system, is designed to even out the windrow and force-feed the crop into the baler for maximum throughput. The 14-knife OptiCut cutting system provides a theoretical cutting length of 2.75" (7 cm). Each single knife is spring protected against damage from foreign objects. With group selection (VB 3165 & 3195 models) the operator can choose to have 0, 4, 7, 7, or 14 knives in operation.

The Integral Rotor with the 23-knife OptiCut system from KUHN has the benefits of intensive cutting and mechanical protection. The 23-knife OptiCut system provides a theoretical cutting length of 1.75" (4.45 cm). Each single knife is spring protected against damage from foreign objects. With group selection the operator can choose to have 0, 7, 11, 12, or 23 knives in operation.



CONSISTENT, FIRM ROUND BALES

Progressive Density – The KUHN Solution
The Progressive Density system has proven its value on all KUHN VBP balers. The system increases tension as the bale forms, providing a firm bale with a tough outer shell.

How Does It Work?

As the bale grows within the bale chamber, the belt tensioning arm is subjected to steadily increasing resistance from two hydraulic cylinders and a spring tensioner. As the bale’s diameter increases, the bale’s density does too. The result is a very firm bale with a moderate core – not too soft, not too hard. With a tougher outer layer, straw bales will be more tolerant to bad weather conditions, while silage bales will maintain their shape for improved stacking and easier handling.

Fast, Perfect Bale Formation
The 5 belt, 3 roller design of the VBP 3100 Series bale chamber ensures fast, consistent bale formation. The aggressive profile of the top chamber roller improves crop contact and reduces crop loss. The front segment of the baler is fitted with a large smooth roller and driven cleaning roller that prevents crop build up at the front of the machine. The unique mix of the KUHN Progressive Density system and smart bale chamber design ensures perfect bale formation every time.

Bale Size
The VBP 3165 and VBP 3195 both offer a maximum bale wrapping size of 63” (1.6 m). The VBP 3165 is capable of forming a 63” (1.6 m) bale, while the VBP 3195 is able to form a 72 5/8” (1.85 m) bale (when not wrapping).



TIGHTLY WRAPPED BALES

Net and Twine
One of the final steps in creating the perfect bale is the wrap. Securing a bale to protect it from the elements and from losing its shape is one of the most crucial steps. The less time required to secure the bale, the higher the baling operation output.

Rapid and Secure Bale Transfer
To minimize idle time and maximize output, a rapid bale transfer is required. The side guide protection plates of the KUHN VBP BalePacks ensure a rapid and secure bale transfer even when working in steep or sloping fields. The 4-belt wrapping table with two large rollers and four side cones provide maximum bale traction, bale rotation and proper film overlap, regardless of the bale shape.

Patented, Simple Pre-Stretcher
The pre-stretcher holds two 30" rolls of film and maintains a 70% stretch evenly throughout the roll. Conical ends maintain optimum film width and reduce tearing. Aluminum construction avoids buildup of tack from the film. The design and location makes it very easy to change film rolls compared to competitive models.

3D Wrapping
KUHN’s 3D wrapping distributes the total film quantity more uniformly and efficiently across the entire surface of the bale.

3D wrapping will first apply the film where it is most needed, the corners of the bale. After finishing the complete 3D wrapping cycle, approximately 80% of the bale is already covered in film. Then the conventional wrapping will make sure that 100% of the bale is covered with stretch film. The film has a perfect oxygen barrier because all layers are glued together with tack. The cylindrical wrap ensures that the bale retains its shape, even after long storage periods. Use of both IntelliWrap and 3D wrapping provides well-shaped, tightly sealed bales and will maintain silage quality over long storage periods.

IntelliWrap, The Intelligent Wrapping Technology
Greater management and control of the wrapping process can be achieved by our unique IntelliWrap control system. IntelliWrap uses sophisticated electronics and hydraulics to monitor the wrapping process and continuously controls the film overlap, allowing total flexibility. Depending on local field conditions, crop and storage periods the amount of film layers (4, 5, 6, 7, 8, 9...) can simply be adjusted. An excellent distribution of the film around the bale and precise overlap of the film provides maximum efficiency and increased silage quality.

Specifications

SPECIFICATIONS
MODEL VBP 3195 OPTICUT
Bale size - width x diameter 4' X 6' (1.2 m X 1.8 m)
Bale diameter 31.5" to 63" (80 cm to 185 cm)
Bale width 47" (119 cm)
Bale chamber 1 starter roller - 2 bale chamber rollers - 5 belts
Bale chamber idler rollers Standard with heavy-duty bearings and seals
Transport width 9'10" (3 m)
Bale pressure 870-2,900 psi (20 - 235 bar) monitor controlled
Belts Standard endless belts
Secondary belt drive Standard
Chain lubrication system Standard Beka-Max continuous chain oiler system
Pickup width 91" (231 cm)
Number of pickup tine bars 5
Pickup gauge wheels Pivoting wheels
Pickup wind guard Standard large crop roller
Intake system Standard 14 or 23 knife OptiCut with integral rotor and drop floor system
Number of knives 14 with group selection the operator can choose to have 0, 4, 7, 7, or 14 knives in operation
Knife protection system Spring
Bale packaging system Net wrap system
Net storage Standard up to 2 rolls
Film roll magazine Holds up to 10 rolls of stretch film
ISOBUS ready Standard
Electronic monitor
Wrapping system Twin satellite
Wrapping table 2 rollers and 4 belts
Bale support 4 rollers
1/2 table speed when working with one roll of film Standard
Automatic stop by end of film / tear Standard
Pre-stretch ratio Standard 70% - optional 60% pre-stretcher kit
Required tractor hydraulic connections 1 DA and 1 SA with a 3/4" free return
Oil flow and pressure required 10.5 GPM at 2,650 PSI
PTO power requirement OC 14 110 / 130
PTO type OC 23 125
PTO speed Standard CV PTO (1 3/8" - 6 splines) with cam clutch
Road lights and signaling Standard 540
Axle type Standard
Tires Standard tandem
Brake system 500/45-22.5 tires
Minimum machine weight Standard hydraulic
  12,550 lbs (5,693 kg)
