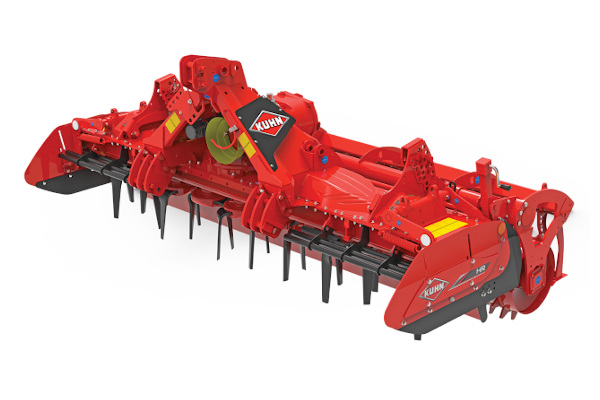

Kuhn HR 3530

Double tap to zoom



Features

HEAVY-DUTY DRIVE COMPONENTS

Hitch
HR 1030 series models are compatible with Cat. 2 and 3 hitches. Additionally, Cat. 4N quick hitch adapters are available as a field-installed option.

Central Gearbox and Driveline
All HR 1030 series power harrows feature a 1,000 rpm PTO with cam clutch protection as standard. The central gearbox includes an integrated oil pump and the top bearing receives fresh oil injection for extended life. The result is a class-leading power rating of up to 270 PTO horsepower on the HR 4530. The central gearbox is also offset to the rear to help keep the PTO shaft at a flatter angle to reduce wear.

VERSATILE & RELIABLE

Switchable Rotor Speeds
Switchable duplex gears in the central gearbox allow for two rotor speeds as standard. Including the factory set, a class-leading total of five gearsets are available. This wide range of rotor speeds allows operators to tailor the machine to the crop and soil conditions while still running at optimal PTO input speed for fuel efficiency, productivity, and ideal seedbed preparation.

Gear Trough & Rotor Drive
The sides of the main gear trough are constructed from 5/16” (8 mm) thick steel for outstanding structural rigidity. Forged-steel, treated gears have a convex shape to transmit all of the drive forces at the center of the upper bearings. These large bearings are preloaded with a spacer, while the lower bearings are held and protected by a one-piece housing that is 28 mm thick. The milled cover and cassette seal keep out contamination that could damage the gears or bearings. The main trough is lubed-for-life with extreme-pressure grease.

CREATE THE ULTIMATE SEEDBED

Blades & Blade Holders
All HR 1030 series power harrows come standard with blades 12.4” (315 mm) long and 0.63” (16 mm) thick. These blades are designed to reduce power requirements while working up to 9.8” (25 cm) deep for optimal seedbed preparation in a variety of crop applications. Optional DuraKUHN hard-coated blades offer improved durability and lifespan in abrasive soil conditions.

Round, flat blade holders are positioned with significant clearance below the trough. Fast-Fit technology promotes quick and easy blade changes, increasing critical uptime in tight tillage windows.

Three Available Roller Options
With three different roller options to choose from, the HR 1030 Series power harrows are suited to fit any commercial-sized operation’s needs.

MaxiPacker Rear Roller
The MaxiPacker rear roller comes standard on all HR 1030 series models. With an overall diameter of 21” (535 mm), it is a versatile roller that performs well in most soil conditions. To help improve performance in wet and sticky ground, scraper plates located between the rows of studs keep the roller clean.

MegaPacker Rear Roller
The optional MegaPacker rear roller is a similar design to the standard MaxiPacker, but with an increased overall diameter of 23.2” (590 mm). This helps reduce power requirements when working in tougher conditions.

MaxiCrumbler
The optional MaxiCrumbler rear roller is 20.5” (520 mm) in diameter. It is best suited to finishing dry soils.

Depth Control
Mechanical depth control comes standard on all HR 1030 series models and allows the operator to fine-tune the working depth by moving a series of pins. For even greater comfort and ease of use, optional hydraulic depth control allows the operator to stay in the tractor seat when making adjustments.

Leveling Bar
The standard leveling bar mounted behind the rotors helps to smooth out the soil so the roller at the rear of the machine can finish creating the optimal seedbed. The leveling bar’s depth is adjusted mechanically with an easy-to-use crank for raising and lowering.

The leveling bar also features three manually-adjusted angles depending on conditions and the seedbed finish desired. The “trailing” position is best suited to shallow depths and higher speeds; the middle position provides the best leveling; and the “forward” position pushes material back toward the rotors for maximum clod breakup.

Specifications

MODEL HR 3530
Maximum PTO power 250 hp (183 kW)
Minimum PTO power 90 hp (66 kW)
Central gearbox Duplex
Gearbox protection Cam type cut-out clutch
PTO speed 1,000 rpm
Rotor speed 290 / 330 rpm
Number of rotors 12
Minimum working depth 2" (5 cm)
Maximum working depth 9.8" (25 cm)
Working depth adjustment Mechanical
Leveling bar Standard - mechanical adjustment
Side deflectors Adjustable - with spring safety and double arm
Hitch Cat. 2 and 3
Approximate machine weight with MaxiPacker roller 3,931 lbs (1,783 kg)
Transport width 11'6" (3.50 m)
Working width 11'3" (3.44 m)

Product specifications are based on published information at the time of publication.
Product specifications are subject to change without further notice.
Contact your local KUHN Dealer for more information.
