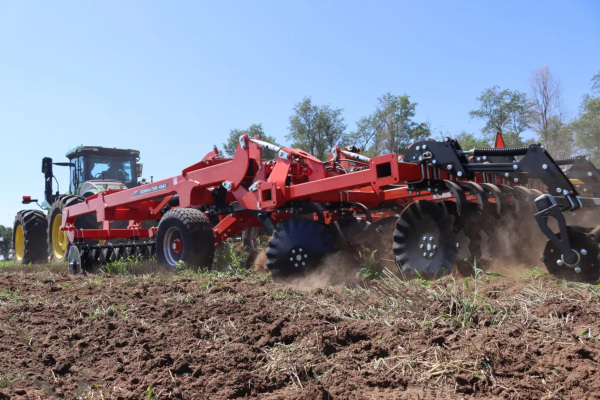

Kuhn DOMINATOR 4861-9F
![](/assets/Uploads/Kuhn-Dominator-4861-9F-Y24.jpg)
Features
Residue Management
Coulters
Adjustable, hydraulic constant-flow 25” diameter coulters, with 8” spacing, are indexed to each sub-soil shank maintaining a uniform cutting pressure across varying soil and heavy residue. A new heavy-duty scraper bar weldment prevents residue and wet soil from building between coulter blades. Coulters are indexed so a single blade is operating on each side of the subsoil shank. Increase the coulter hydraulic down pressure for a blacker, rougher field finish or decrease coulter down pressure for a smaller clod size with an extremely level field finish. Coulter gangs are mounted with Rock-Flex™ bearing arms for added protection. Coulters feature PEER® TILLXTREME™ maintenance-free bearings.
Shank Spacing
Subsoil shanks on 24” spacing provide optimum cut widths for available horsepower per foot of cut. This double-rank design allows for a minimum of 48” between adjoining shanks for maximum “no-plug” residue and soil flow.
Fracture
Shanks
Compaction reduction and subsoil maintenance are accomplished through 3,000-pound point load, auto-reset subsoil shanks. Shanks are equipped with Double K™ ripper points and offer a maximum operating depth of 16 inches.
Double K™ Points
Double K ripper points double the wear life of prior KUHN Krause Dominator fabricated steel and carbide-capped ripper points. Solid casting increases durability in rocky conditions. Choose between the 26.5-pound, 7” wing ripper point and the 22-pound, 2.5” straight ripper point.
Rear Disc Conditioner
Rear Disc Conditioner
Left and right sections of the rear disc conditioner are configured in a reverse tandem design that first moves soil inward, then outward in opposite directions, to aggressively mix and bury residue, size large clods and level the soil. The disc conditioner is hydraulically controlled with a lower limit adjustment valve. Uniform 12” spacing is maintained with individually mounted, 24” fluted, shallow concavity blades. Disc conditioner blade configuration offers a level field finish while functioning within a wide range of operating speeds. A specially designed C-arm now allows for the disc hub to be directly mounted. This new combination of C-arm and hub provides 10% more soil and residue flow through the disc conditioner to improve continuous operation in adverse conditions. Dual hydraulic cylinders control the position of the rear disc conditioner for optimal operating height in relation to the tilled soil surface.
Heavy-Duty 24/7® Conditioning Reel
Choice of heavy-duty solid round bar or heavy-duty flat bar reel with PEER® TILLXTREME™ maintenance-free bearing assemblies mounted on heavy-duty ductile cast bearing arms provides aggressive clod sizing and soil firming. Hydraulic control for reel lift is standard.
Maintenance-Free Bearing Assembly
Independently mounted blades on a 6-bolt hub containing double angular contact bearing equipped with 11-lip seals offer outstanding reliability and maintenance free operation.
Specifications
SPECIFICATIONS | DOMINATOR 4861-9F |
Transport Width | 15'6" (4.7 m) |
Transport Height | 11'6" (3.5 m) |
Frame Type | Folding |
Number of Shanks | 9 |
Shank Spacing | 24" (61 cm) |
Coulter Blade Spacing | 8" (20.3 cm) |
Working Width | 18' (5.5 m) |
Shipping Weight Less Reel Option | 21,516 lb (9 759 kg) |
Shipping Weight With Reel Option | 23,189 lb (10 518 kg) |
STANDARD EQUIPMENT | |
Hitch Type | CAT IV Articulating Ball Hitch for 2" Pin |
Tongue Type | Rigid, Mechanical Adjustable, Self-Leveling Tongue |
Depth Control | Single Point Hydraulic Depth Control |
Hydraulics | Color-Coded Hydraulic Hose Grips, All Hydraulic Hoses |
Coulter Blades | 25" x ¼" Smooth |
Coulter Gangs | 8" Spacing, Adjustable Constant Pressure Hydraulic, Heavy-Duty 6" Bell Diameter Ductile Iron Spools, 1-¾" Diameter Round Alloy Tie Rod with Maintenance-Free PEER® TILLXTREME™ Bearings, C-Type Rock-Flex™ Bearing Arms 1-¼" x 2-½" |
Shanks | 3,000 lb Point Load Spring Reset Parabolic Sub-Soil Shank, 1-¼ x 4" Shank Size with Wear Bar, 21" Trip Height, 39" Underframe Clearance, 16" Working Depth |
Points | Double K® Chromium Carbide, 7" Winged Ripper Points |
Main Frame Wheels | (4) 360/65R17.5 Metric Tires, Walking Beams, Slip-In Spindles, Maintenance-Free Spherical Bearings, 8-Bolt Heavy-Duty Hubs |
Wing Frame Wheels | Not Applicable |
Hydraulic Controlled Rear Disc Conditioner | Maintenance-Free, Double Angular Contact Bearing, 6-Bolt Hub for Blades 24" x 6 Gauge, Fluted Shallow Concavity Disc Blades, 12" Blade Spacing, Remote Single-Point Hydraulic Lower Limit Stop, Reversed Tandem Design |
Rear Conditioning Reel | 24/7® Soil Conditioning Reel, Heavy-Duty Solid Round Bar Spiral Reels, PEER® TILLXTREME™ Maintenance-Free Bearings |
Hydraulic Controlled Conditioning Reel | (1) 2" x 3.25" Cylinder and Hoses per Carrier Arm |
Transport Locks and Safety | Hydraulic Valves, Transport and Wing Fold, Slow Moving Vehicle Sign, High-Visibility LED Lighting |
OPTIONAL EQUIPMENT | |
Hitch Type | CAT III Articulating Ball Hitch for 1-1/2" Pin |
Tongue Type | Guardian Hitch™ (Cushion Tongue) |
Points | Double K® 2-½" Cast Chromium Carbide, Straight Ripper Point |
Rear Conditioning Reel | None |
Rear Conditioning Reel | 24/7® Soil Conditioning with Float Position, Heavy-Duty Flat Bar Spiral Reels, PEER® TILLXTREME™ Maintenance-Free Bearings |
Hydraulic Controlled Conditioning Reel | None |
OPERATING INFORMATION | |
Recommended Tractor Power | 40 - 50 ENG HP/shank (29 - 37 kW/shank) |
Working Depth Range | 8" - 16" (20.3 - 40.6 cm) |
Recommended Operating Speed | 4 - 7 mph (6 -11 km/h) |
