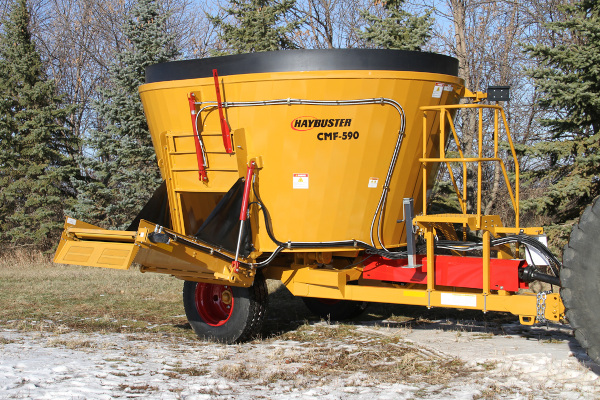

HayBuster CMF-590

The 590 is part of our CMF series of vertical mixers that cut materials like hay, straw and corn stocks.

They also mix materials like distillers, silage, corn and more.

Mixing Capacity

The CMF-590 has a 590 cu. ft. mixing capacity with the standard extension.

Conveyor

The unloading door is 42” wide and can be on the left or right side of the machine. Conveyor options are a 3’ or 5’ extension which gives a feeding height range of between 40” and 62”.

Magnets

Magnets on the discharge chutes remove metal, such as bale wire, from feed providing protection for your cows.

CV PTO

The CMF-590 comes equipped with a Heavy-Duty Constant Velocity 1000 rpm PTO. The 2-Speed Gear Box is used for loaded start-ups and heavy rations.

4-Point Scale

4-point scale for accurate weighing, with reduced scale bounce during loading and feeding

Rigid Axles

Rigid heavyduty axles on 2 385/65R 22.5 tires.

Clutch

Free motion clutches on the driveline protect the heavy-duty gear boxes. Gear boxes come with a 2-year warranty.

Digi-star

The CMF-590 is equipped with a Digi-Star 4 pt. scale and monitor. Various monitor options are available. The Digi-Star system is powered by a standard onboard 12-volt battery. Digi-Star feed rationing programs are also available.

Auger with Knives

104” heavy-duty single auger with up to 7 self-sharpening serrated knives driven by an HD USA gearbox.

Ladder

Ladder mounted on front of machine allows for viewing of mixed ration. The ladder should only be used while the machine is stopped.

Vertical Knives

Adjustable vertical knives for more aggressive cutting.

Rubber extension

The tapered boil ring is standard equipment on the CMF590. It prevents product from boiling over the sides during the cutting and mixing processes.

Standard Features

Conveyor: The unloading door is 42” wide and can be on the left or right side of the machine. Conveyor options are a 3’ or 5’ extension which gives a feeding height range of between 40” and 62”.

Magnets: Magnets on the discharge chutes remove metal, such as bale wire, from feed providing protection for your cows.

CV PTO: The CMF-590 comes equipped with a Heavy-Duty Constant Velocity 1000 rpm PTO. The 2-Speed Gear Box is used for loaded start-ups and heavy rations.
4-Point Scale: 4-point scale for accurate weighing, with reduced scale bounce during loading and feeding

Rigid Axles: Rigid heavyduty axles on 2 385/65R 22.5 tires.

Clutch: Free motion clutches on the driveline protect the heavy-duty gear boxes. Gear boxes come with a 2-year warranty

Digi-star: The CMF-590 is equipped with a Digi-Star 4 pt. scale and monitor. Various monitor options are available. The Digi-Star system is powered by a standard onboard 12-volt battery. Digi-Star feed rationing programs are also available.

Auger with Knives: 104” heavy-duty single auger with up to 7 self-sharpening serrated knives driven by an HD USA gearbox.

Ladder: Ladder mounted on front of machine allows for viewing of mixed ration. The ladder should only be used while the machine is stopped.

Vertical Knives: Adjustable vertical knives for more aggressive cutting.

Rubber extension: The tapered boil ring is standard equipment on the CMF590. It prevents product from boiling over the sides during the cutting and mixing processes.

Optional Features

Magnets on chutes/spouts Discharge magnets on the chutes/spouts remove ferrous metal, such as bale wire, from feed, providing the highest quality feed available.

Digi-Star Scale Choose from any Digi-Star scale indicator. Also available are optional Digi-Star Feed Management Programs. www.digi-star.com

Left or right door opening Optional left or right door opening with discharge conveyor options of 3’ or 5’ provide the ultimate flexibility for feeding applications. The 3’ conveyor has a feed height ranging from 40” to 48”. The 5’ conveyor has a feed range from 49” to 62”

2-speed gear box The 2-speed gear box is used for heavy starts after transporting heavy rations to protect the tractor PTO and mixers drive train.
