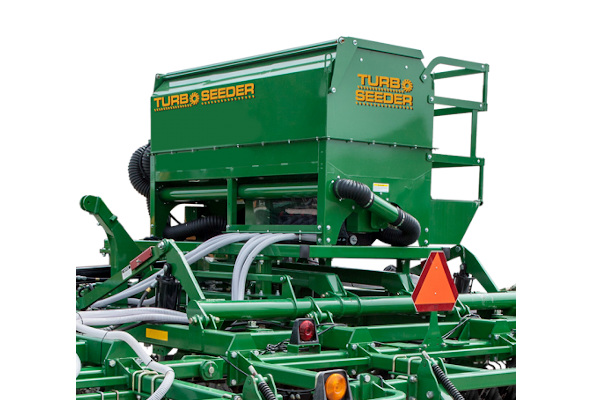

Great Plains TS9100 - 24 CU/FT TURBO-SEEDER
![](/assets/Uploads/GP-24CuFt-TurboSeeder-21.jpg)
Features
HOPPER BOX DESIGN
Individual metering wheels and mixing chambers provide equalized and consistent flow to each row, even on hills and slopes. They also allow the ability to plant different types of seeds by changing out the metering wheels. The angled hopper walls provide an even flow of seed to the metering door, ensuring a constant supply of seed.
COLOR-CODED METER WHEELS
BLACK – Small seeds, such as annual rye, tillage radish, and alfalfa. RED – Small to medium seeds, such as cereal rye, wheat, and oats. WHITE* – Soybeans and field peas. YELLOW* – High-volume fertilizer. *Additional options available from Gandy Company.
DIFFUSER PLATE
Distributes the seed laterally and downward in even, 30" bands.
EASY-FILL HOPPER
A slide-away cover simplifies and speeds up filling. The high-capacity hopper is ideal for even large-acreage operations. Kit includes a ladder and walkboard for easy access to the hopper.
ELECTRIC SOLENOIDS
Provide section control on each half of the machine to avoid wasting seed on double-seeding.
HOSE KIT
The Turbo-Seeder has 12 or 16 diffusers and 1-1/4" diameter hose for unrestricted air and seed flow.
HYDRAULICALLY-DRIVEN FAN
Achieves even seed distribution across the entire machine by delivering seed to individual diffuser plates that disperse seed laterally and downward in even bands.
LADDER AND WALKBOARD
For easy access to the seed hopper without climbing over the machine.
TURBO-SEEDER CONTROLLER
The TS controller is an electrically-operated, in-cab unit that provides control of the left and right meter shafts individually, as well as a master switch to turn off both metering units. It also monitors air pressure and metering shaft rotations.
ZERO-MAX® METER DRIVE
12-volt, 25-amp meter offers infinite rate adjustments. This motor controls the speed of the metering wheels, which, in combination with the ground speed, determines the application rate.
Specifications
MODEL INFO | COVER CROP ATTACHMENT |
MODEL | 24 CU/FT TURBO-SEEDER |
HOPPER SIZE (cu. ft.) | 24 |
METRIC CAPACITY (cu. m.) | .65 |
BUSHEL CAPACITY (approx.) | 19.2 |
CHEMICAL CAPACITY (lbs.) | 960 |
OUTLET OPTIONS (max.) | 16 |
MAXIMUM BROADCAST WIDTH AT 30" DEFLECTOR SPACING (ft.) | 40 |
MAXIMUM BROADCAST WIDTH AT .76m DEFLECTOR SPACING (m.) | 12 |
SHAFT OPTIONS | Single |
12-VOLT ELECTRIC DRIVE - NON-SPEED COMPENSATING | Standard |
ZERO-MAX CONTROLLER | Standard |
